Hydronic Balancing Made Easy: Using Smart TRVs to Optimise Heating Performance

Learning Objectives

After reading this article, participants will be able to:

Understand the purpose of hydronic balancing in radiator heating systems.
Identify common symptoms of an unbalanced radiator circuit.
Explain how traditional hydronic balancing methods are performed.
Describe the role of Thermostatic Radiator Valves (TRVs) in temperature control.
Understand how MClimate Vicki Smart TRVs dynamically regulate radiator output.
Recognise the benefits of demand-led heating control for occupant comfort and energy efficiency.
Identify how smart TRVs can support ongoing system optimisation compared to static balancing methods.
Understand the value of room-level data and analytics in modern building energy management.
Assess suitable applications for smart TRV technology in residential, healthcare, education, hospitality, and commercial buildings.
Appreciate the contribution of intelligent heating controls to net-zero and energy-reduction strategies.

Category: Smart Building Technologies
Sub-Category: Smart Heating & Hydronic Optimisation
Estimated Reading Time: 12-15 Minutes
CPD Value: 0.25 Hours (15 Minutes)

Executive Summary

Hydronic balancing plays a critical role in ensuring that heating systems deliver comfort, efficiency, and reliable performance. Yet despite its importance, balancing is often treated as a one-time commissioning exercise rather than an ongoing optimisation process.

Traditional balancing methods rely on flow calculations, commissioning adjustments, and specialist expertise to ensure each radiator or heating circuit receives the correct amount of heating water. While effective, these methods can be labour-intensive and difficult to maintain as building occupancy patterns, layouts, and operational requirements evolve.

The emergence of smart building technologies is changing this approach. Connected thermostatic radiator valves (TRVs), room-level analytics, and cloud-based optimisation platforms now enable balancing decisions to be based on real operational performance rather than static assumptions.

This article explores the principles of hydronic balancing, examines traditional and emerging balancing methodologies, and explains how MClimate Vicki Smart TRVs can help create a more adaptive, data-driven approach to heating optimisation while contributing valuable data to a building's digital future.

What Is Hydronic Balancing?

Hydronic balancing is the process of ensuring that the correct volume of heating water reaches every radiator, underfloor heating circuit, or heating terminal within a building.

In any hydronic system, water naturally follows the path of least resistance. Without balancing, radiators closest to the heat source may receive excessive flow while those further away receive insufficient flow. The result is uneven heat distribution and inconsistent occupant comfort.

Common symptoms of an unbalanced system include:

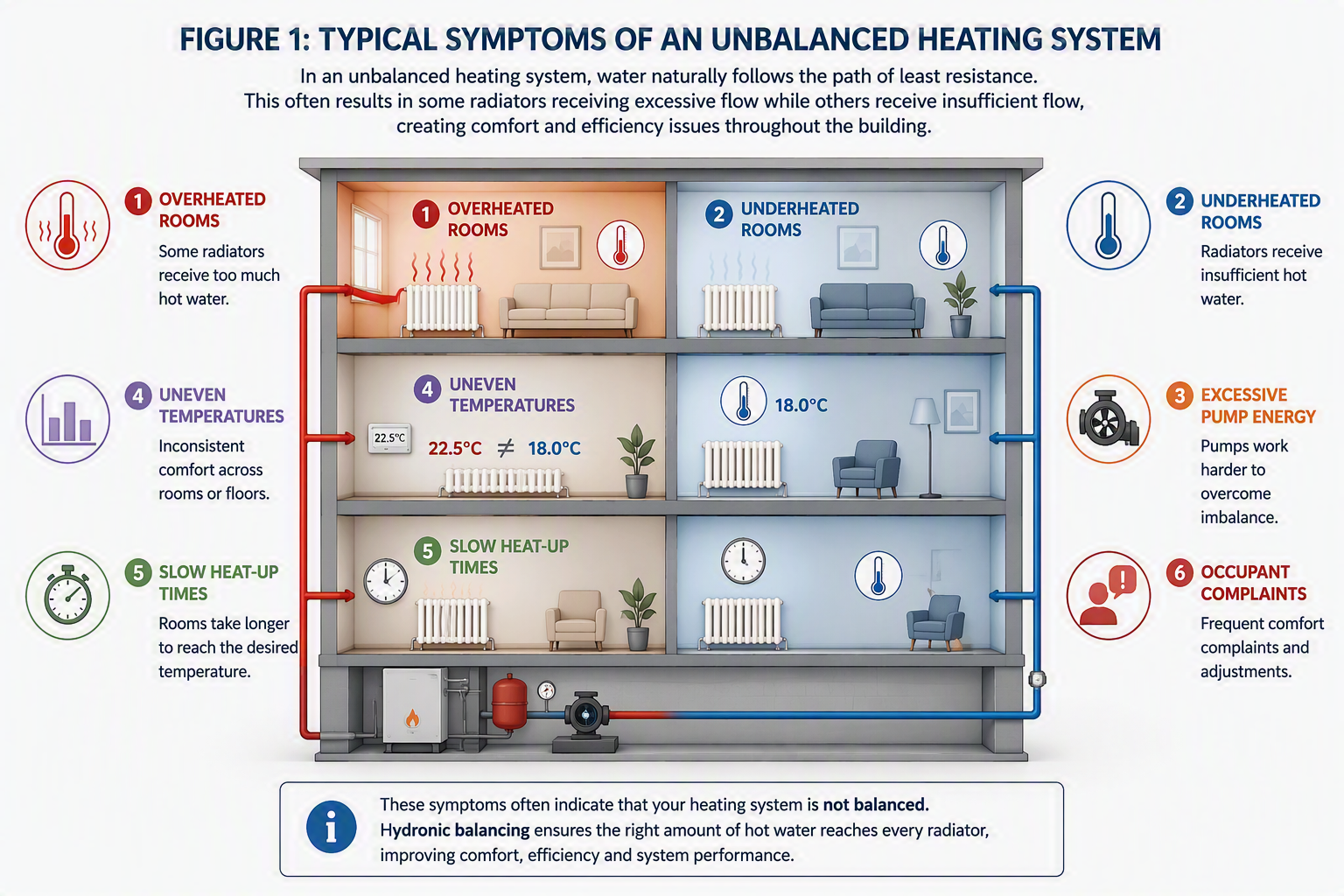

As shown in Figure 1, symptoms such as overheating, underheating, and uneven temperatures are often early indicators that a heating system may require hydronic balancing. Common issues include:

Hot and cold spots throughout the building.
Rooms that take significantly longer to heat.
Overheated spaces alongside underheated spaces.
Increased pump energy consumption.
Excessive valve noise.
Frequent occupant comfort complaints.
Reduced overall heating system efficiency.

Hydronic balancing ensures that every heating circuit receives the flow necessary to achieve its intended thermal output, allowing the entire system to operate as designed.

Why Hydronic Balancing Matters

The benefits of effective hydronic balancing extend far beyond occupant comfort.

A balanced heating system can contribute to:

More consistent internal temperatures.
Reduced overheating and underheating.
Lower energy consumption.
Reduced pump operating costs.
Improved heat pump efficiency.
Better performance of smart heating controls.
Increased occupant satisfaction.
Lower building operational costs.

As buildings pursue energy reduction targets and net-zero objectives, hydronic balancing is increasingly recognised as a foundational requirement for efficient heating system operation.

Traditional Approaches to Hydronic Balancing

Historically, balancing has been achieved during commissioning through a combination of calculations, measurements, and manual valve adjustments.

The most widely adopted methodologies include:

Method A

A simplified balancing approach typically used for smaller and less complex heating systems.

Method B

A more detailed methodology that uses building heat-loss calculations, radiator outputs, and hydraulic calculations to determine required flow rates throughout the heating network.

Method B is widely regarded as the preferred approach for larger and more complex installations due to its higher level of accuracy.

Modern balancing solutions may also incorporate:

Self-balancing radiator valves.
Differential pressure control devices.
Pressure Independent Control Valves (PICVs).

Manufacturers such as Siemens, Danfoss, Honeywell, and others offer products designed to maintain flow stability under varying operating conditions.

While highly effective, these approaches typically require intervention within the pipework infrastructure and often involve significant commissioning effort.

When Is Hydronic Balancing Required?

Hydronic balancing should be considered whenever heating system performance may be affected by changes in flow distribution.

Typical scenarios include:

New Building Projects

Balancing is a critical part of system commissioning and ensures design performance is achieved.

Building Refurbishments

Adding radiators, modifying layouts, extending pipework, or upgrading plant equipment can all alter hydraulic conditions.

Occupant Comfort Complaints

Common indicators include:

Some rooms are too warm.
Some rooms are too cool.
Uneven temperatures between floors.
Slow heating response.

Heat Pump Installations

Heat pumps generally operate most efficiently with stable and predictable flow conditions, making effective balancing increasingly important.

Smart Control Upgrades

When introducing smart TRVs, weather compensation, occupancy control, or advanced BMS strategies, balancing becomes an essential enabler of system performance.

Following Maintenance Activities

Changing pumps, valves, radiators, manifolds, or sections of pipework may require the system to be recommissioned.

The Shift Towards Dynamic Balancing

Traditionally, balancing has been treated as a one-time event completed during commissioning.

The reality is very different.

Buildings evolve. Occupancy patterns change. Spaces are repurposed. Heating demands fluctuate seasonally and operationally.

As a result, many buildings gradually drift away from their original balanced condition.

This has led to growing interest in dynamic balancing methodologies that continuously assess and optimise heating performance based on actual operating conditions rather than static design assumptions.

The combination of IoT sensors, smart controls, analytics, and cloud platforms is enabling a new generation of intelligent heating optimisation solutions.

Emerging Temperature-Based Balancing Methods

A significant development in recent years has been the emergence of temperature-based balancing approaches.

Rather than focusing solely on hydraulic measurements and theoretical flow calculations, these methods analyse how rooms respond to heating in real-world conditions.

Parameters such as:

Room temperature.
Heat-up rate.
Thermal response.
Occupancy patterns.
Heating demand.

can be used to identify opportunities for optimisation.

This approach aligns with emerging European thinking around temperature-based alternatives to conventional hydronic balancing, where actual room performance becomes a key indicator of system effectiveness.

How MClimate Vicki Supports Hydronic Balancing

MClimate has developed an innovative approach that combines smart thermostatic radiator valves with building analytics to simplify hydronic balancing and heating optimisation.

Rather than requiring extensive pipework modifications, MClimate Vicki operates at the radiator level and uses room performance data to optimise heating delivery.

How the Process Works

1. Installation

Vicki Smart TRVs are installed on radiators throughout the building and connected via LoRaWAN.

2. Building Mapping

Radiators, rooms, and zones are configured within the MClimate Enterprise platform.

3. Calibration Phase

During a typical 2-4 day learning period, the system collects:

Room temperature data.
Setpoint information.
Valve position data.
Heating response characteristics.

4. Heat-Up Coefficient Calculation

The platform calculates a heat-up coefficient for each room.

This value indicates how quickly a room responds to heating demand.

A south-facing office with significant solar gain may heat rapidly, while a north-facing room with large window areas may respond much more slowly.

5. Automated Optimisation

Using these real-world performance characteristics, MClimate can optimise radiator behaviour to improve heat distribution across the building.

6. Ongoing Operation

Following calibration, the building benefits from a more balanced heating profile while maintaining the flexibility and intelligence of a modern smart heating system.

Key Benefits of the MClimate Approach

Compared to conventional balancing methods, MClimate offers several advantages:

No intrusive pipework modifications.
Reduced commissioning effort.
Faster deployment.
Minimal disruption to occupants.
Ideal for retrofit environments.
Uses actual room performance data.
Supports continuous optimisation.
Improves comfort and user experience.
Helps reduce heating energy waste.
Scales effectively across multi-building portfolios.

For many building owners, this creates an attractive pathway towards heating optimisation without the costs traditionally associated with balancing projects.

Neutrality Statement

It is important to note that temperature-based optimisation should complement, rather than replace, good hydraulic design, correct emitter sizing, and appropriate commissioning practices.

Hydronic Balancing and the Digital Building Passport

As smart buildings become increasingly data-driven, heating system information forms an important part of a building's digital record.

A digitally enabled balancing strategy can contribute valuable operational insights including:

Room thermal performance.
Heat-up coefficients.
Occupancy-driven heating demand.
Optimisation history.
Comfort performance trends.
Energy performance data.

Rather than producing a balancing report that is filed away and rarely reviewed, intelligent systems can create a living operational record that continuously reflects how the building actually performs.

This aligns closely with emerging digital building passport concepts, where operational knowledge becomes a long-term asset supporting maintenance, optimisation, refurbishment, and decarbonisation initiatives.

Practical Applications

MClimate Vicki is particularly well suited to:

Healthcare facilities.
Education environments.
Commercial offices.
Hospitality venues.
Multi-residential developments.
Social housing projects.
Public sector buildings.
Energy retrofit programmes.

The greatest benefits are often achieved in existing buildings where traditional balancing solutions would require costly and disruptive modifications.

Typical Outcomes of Effective Hydronic Balancing

When implemented successfully, hydronic balancing can help deliver:

More consistent room temperatures.
Reduced comfort complaints.
Improved system responsiveness.
Enhanced heat pump performance.
Lower pumping energy.
Reduced overheating.
Improved controllability.
Greater confidence in heating system performance.

Learning Point: Hydronic balancing should be viewed as a strategic enabler of building performance rather than simply a commissioning requirement.

Knowledge Check

Question 1

What is the primary objective of hydronic balancing?

A. Increase boiler efficiency
B. Ensure each heating circuit receives the correct flow
C. Reduce radiator temperatures
D. Increase pump pressure

Answer: B

Question 2

Which is a common symptom of an unbalanced heating system?

A. Consistent temperatures throughout the building
B. Reduced occupant complaints
C. Some rooms are too warm while others are too cool
D. Reduced pump operation

Answer: C

Question 3

What does PICV stand for?

A. Pressure Independent Control Valve
B. Primary Integrated Circuit Valve
C. Pressure Isolation Control Valve
D. Pump Integrated Control Valve

Answer: A

Question 4

What information does MClimate Vicki use to support optimisation?

A. Boiler combustion data
B. Outdoor air quality measurements
C. Room temperature and heating response characteristics
D. Electrical power quality measurements

Answer: C

Question 5

What is a key advantage of temperature-based balancing?

A. Larger circulation pumps are required
B. It eliminates radiators
C. It can adapt to real operating conditions
D. It increases system flow rates

Answer: C

Reflection Question

What indicators would lead you to suspect that a heating system requires hydronic balancing, and how could smart TRV technology assist in identifying or addressing these issues?

Conclusion

Hydronic balancing is evolving from a commissioning activity into a continuous optimisation process. Smart technologies such as MClimate Vicki enable building operators to use real performance data to improve comfort, reduce energy consumption, and support the development of a building's digital passport. As buildings become increasingly connected and data-driven, intelligent heating optimisation will play an important role in achieving operational efficiency, occupant wellbeing, and net-zero objectives.

"The future of smart buildings lies in turning operational data into actionable insight. MClimate Vicki not only helps simplify hydronic balancing, but also creates a digital understanding of heating performance that can form part of a building's evolving digital passport, supporting better comfort, efficiency, and long-term sustainability."

Paul Martin, Technical Lead
